READER & STANDALONE
PRODUCT TYPE
FACE READER
SPECIFICATION
192mm X 92mm X 30mm

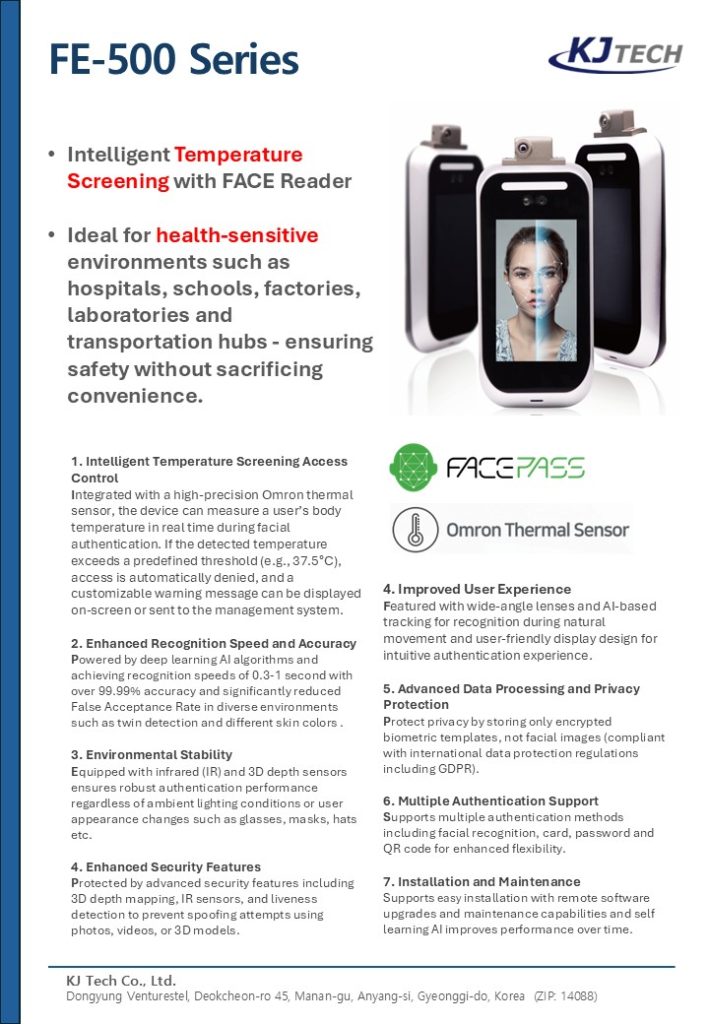

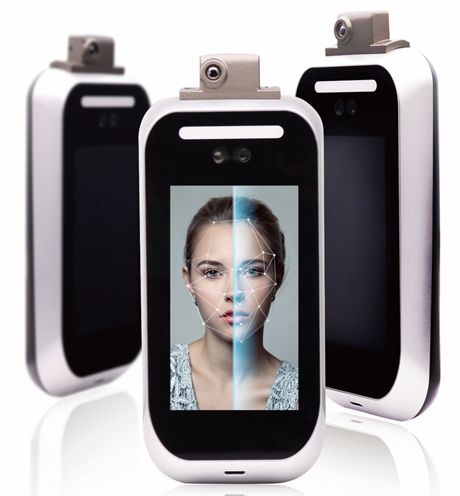

FE-500 Series
- Intelligent Temperature Screening with FACE Reader
- Ideal for health-sensitive environments such as hospitals, schools, factories, laboratories and transportation hubs – ensuring safety without sacrificing convenience.
1. Intelligent Temperature Screening Access Control
Integrated with a high-precision Omron thermal sensor, the device can measure a user’s body temperature in real time during facial authentication. If the detected temperature exceeds a predefined threshold (e.g., 37.5°C), access is automatically denied, and a customizable warning message can be displayed on-screen or sent to the management system.
2. Enhanced Recognition Speed and Accuracy
Powered by deep learning AI algorithms and achieving recognition speeds of 0.3-1 second with over 99.99% accuracy and significantly reduced False Acceptance Rate in diverse environments such as twin detection and different skin colors .
3. Environmental Stability
Equipped with infrared (IR) and 3D depth sensors ensures robust authentication performance regardless of ambient lighting conditions or user appearance changes such as glasses, masks, hats etc.
4. Enhanced Security Features
Protected by advanced security features including 3D depth mapping, IR sensors, and liveness detection to prevent spoofing attempts using photos, videos, or 3D models.
5. Improved User Experience
Featured with wide-angle lenses and AI-based tracking for recognition during natural movement and user-friendly display design for intuitive authentication experience.
6. Advanced Data Processing and Privacy Protection
Protect privacy by storing only encrypted biometric templates, not facial images (compliant with international data protection regulations including GDPR).
7. Multiple Authentication Support
Supports multiple authentication methods including facial recognition, card, password and QR code for enhanced flexibility.
8. Installation and Maintenance
Supports easy installation with remote software upgrades and maintenance capabilities and self learning AI improves performance over time.

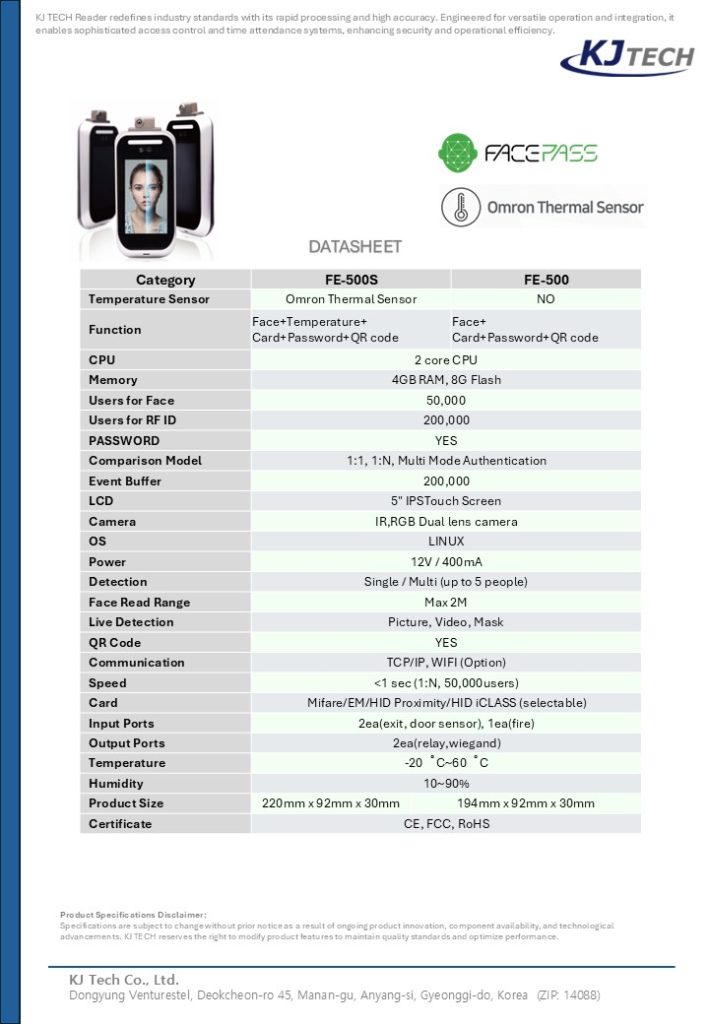

DATASHEET
| Category | FE-500S | FE-500 | |
| Temperature Sensor | Omron Thermal Sensor | NO | |
| Function | Face+Temperature+ Card+Password+QR code | Face+ Card+Password+QR code | |
| CPU | 2 core CPU | ||
| Memory | 4GB RAM, 8G Flash | ||
| Users for Face | 50,000 | ||
| Users for RF ID | 200,000 | ||
| PASSWORD | YES | ||
| Comparison Model | 1:1, 1:N, Multi Mode Authentication | ||
| Event Buffer | 200,000 | ||
| LCD | 5″ IPSTouch Screen | ||
| Camera | IR,RGB Dual lens camera | ||
| OS | LINUX | ||
| Power | 12V / 400mA | ||
| Detection | Single / Multi (up to 5 people) | ||
| Face Read Range | Max 2M | ||
| Live Detection | Picture, Video, Mask | ||
| QR Code | YES | ||
| Communication | TCP/IP, WIFI (Option) | ||
| Speed | <1 sec (1:N, 50,000users) | ||
| Card | Mifare/EM/HID Proximity/HID iCLASS (selectable) | ||
| Input Ports | 2ea(exit, door sensor), 1ea(fire) | ||
| Output Ports | 2ea(relay,wiegand) | ||
| Temperature | -20︒C~60︒C | ||
| Humidity | 10~90% | ||
| Product Size | 220mm x 92mm x 30mm | 194mm x 92mm x 30mm | |
| Certificate | CE, FCC, RoHS | ||
