HID AERO X 100

CONTROLLER

---

---

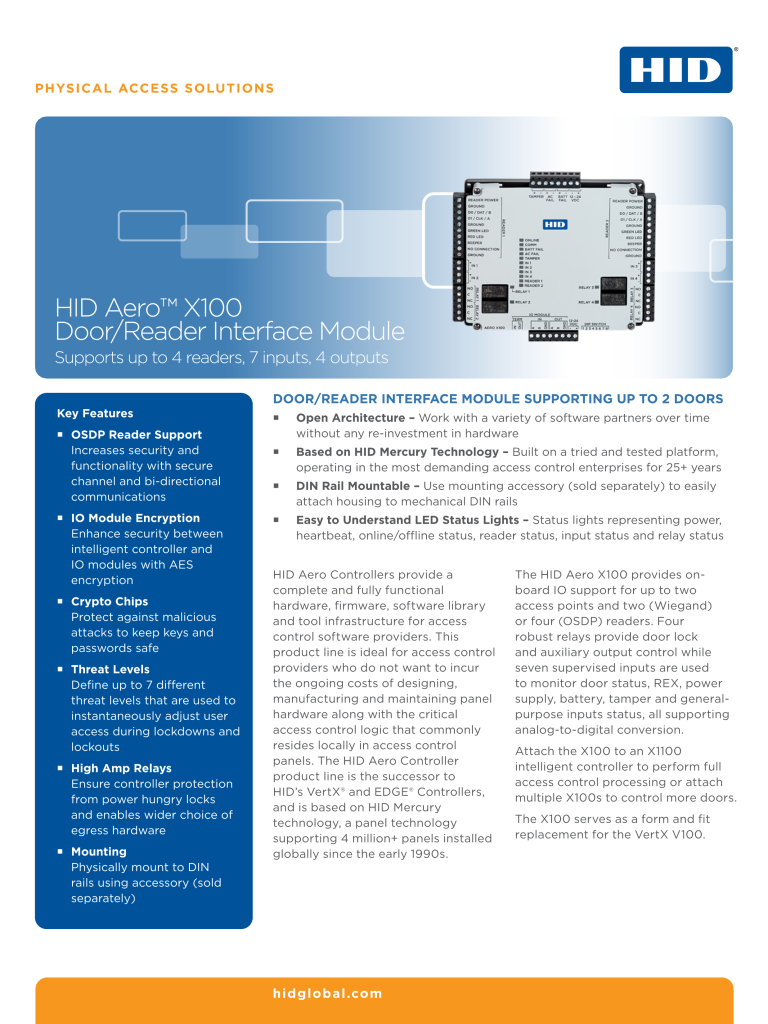

HID Aero™ X100

Door/Reader Interface Module

Supports up to 4 readers, 7 inputs, 4 outputs

Key Features

• OSDP Reader Support

Increases security and functionality with secure channel and bi-directional communications

• IO Module Encryption

Enhance security between intelligent controller and IO modules with AES encryption

• Crypto Chips

Protect against malicious attacks to keep keys and passwords safe

• Threat Levels

Define up to 7 different threat levels that are used to instantaneously adjust user access during lockdowns and lockouts

• High Amp Relays

Ensure controller protection from power hungry locks and enables wider choice of egress hardware

• Mounting

Physically mount to DIN rails using accessory (sold separately)

---

DOOR/READER INTERFACE MODULE SUPPORTING UP TO 2 DOORS

Open Architecture

Work with a variety of software partners over time without any re-investment in hardware

Based on HID Mercury Technology

Built on a tried and tested platform, operating in the most demanding access control enterprises for 25+ years

DIN Rail Mountable

Use mounting accessory (sold separately) to easily attach housing to mechanical DIN rails

Easy to Understand LED Status Lights

Status lights representing power, heartbeat, online/offline status, reader status, input status and relay status

---

HID Aero Controllers provide a complete and fully functional hardware, firmware, software library
and tool infrastructure for access control software providers. This product line is ideal for access control providers who do not want to incur the ongoing costs of designing, manufacturing and maintaining panel hardware along with the critical access control logic that commonly resides locally in access control panels. The HID Aero Controller product line is the successor to HID’s VertX® and EDGE® Controllers, and is based on HID Mercury technology, a panel technology supporting 4 million+ panels installed globally since the early 1990s.

The HID Aero X100 provides onboard IO support for up to two access points and two (Wiegand) or four (OSDP) readers. Four robust relays provide door lock and auxiliary output control while seven supervised inputs are used to monitor door status, REX, power supply, battery, tamper and generalpurpose inputs status, all supporting analog-to-digital conversion. Attach the X100 to an X1100 intelligent controller to perform full access control processing or attach multiple X100s to control more doors. The X100 serves as a form and fit replacement for the VertX V100.

---

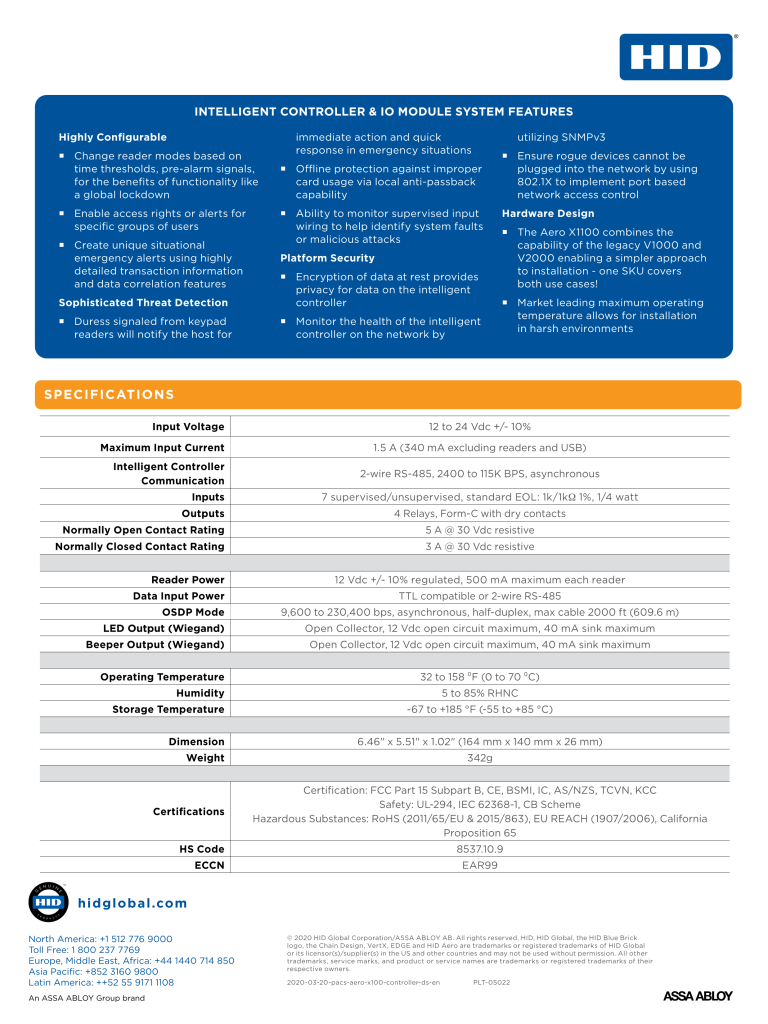

INTELLIGENT CONTROLLER & IO MODULE SYSTEM FEATURES

Highly Configurable

• Change reader modes based on time thresholds, pre-alarm signals, for the benefits of functionality like a global lockdown
• Enable access rights or alerts for specific groups of users
• Create unique situational emergency alerts using highly detailed transaction information and data correlation features

Sophisticated Threat Detection

• Duress signaled from keypad readers will notify the host for immediate action and quick response in emergency situations
• Offline protection against improper card usage via local anti-passback capability
• Ability to monitor supervised input wiring to help identify system faults or malicious attacks

Platform Security

• Encryption of data at rest provides privacy for data on the intelligent controller
• Monitor the health of the intelligent controller on the network by utilizing SNMPv3
• Ensure rogue devices cannot be plugged into the network by using 802.1X to implement port based network access control

Hardware Design

• The Aero X1100 combines the capability of the legacy V1000 and V2000 enabling a simpler approach to installation – one SKU covers both use cases!
• Market leading maximum operating temperature allows for installation in harsh environments
